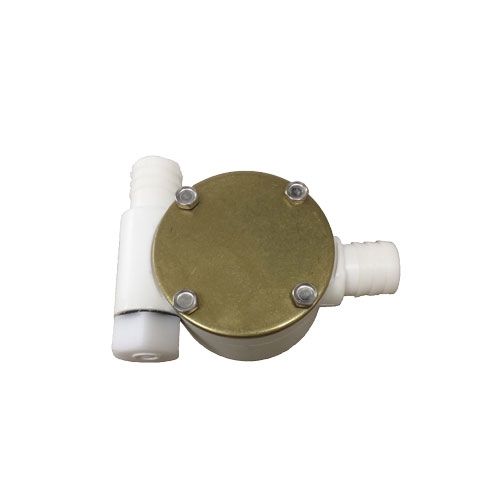

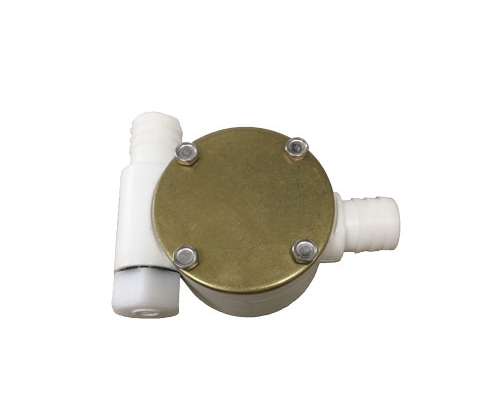

Crown Head Pump Assembly

Crown Head Pump Assembly complete, Post-JAN.1988

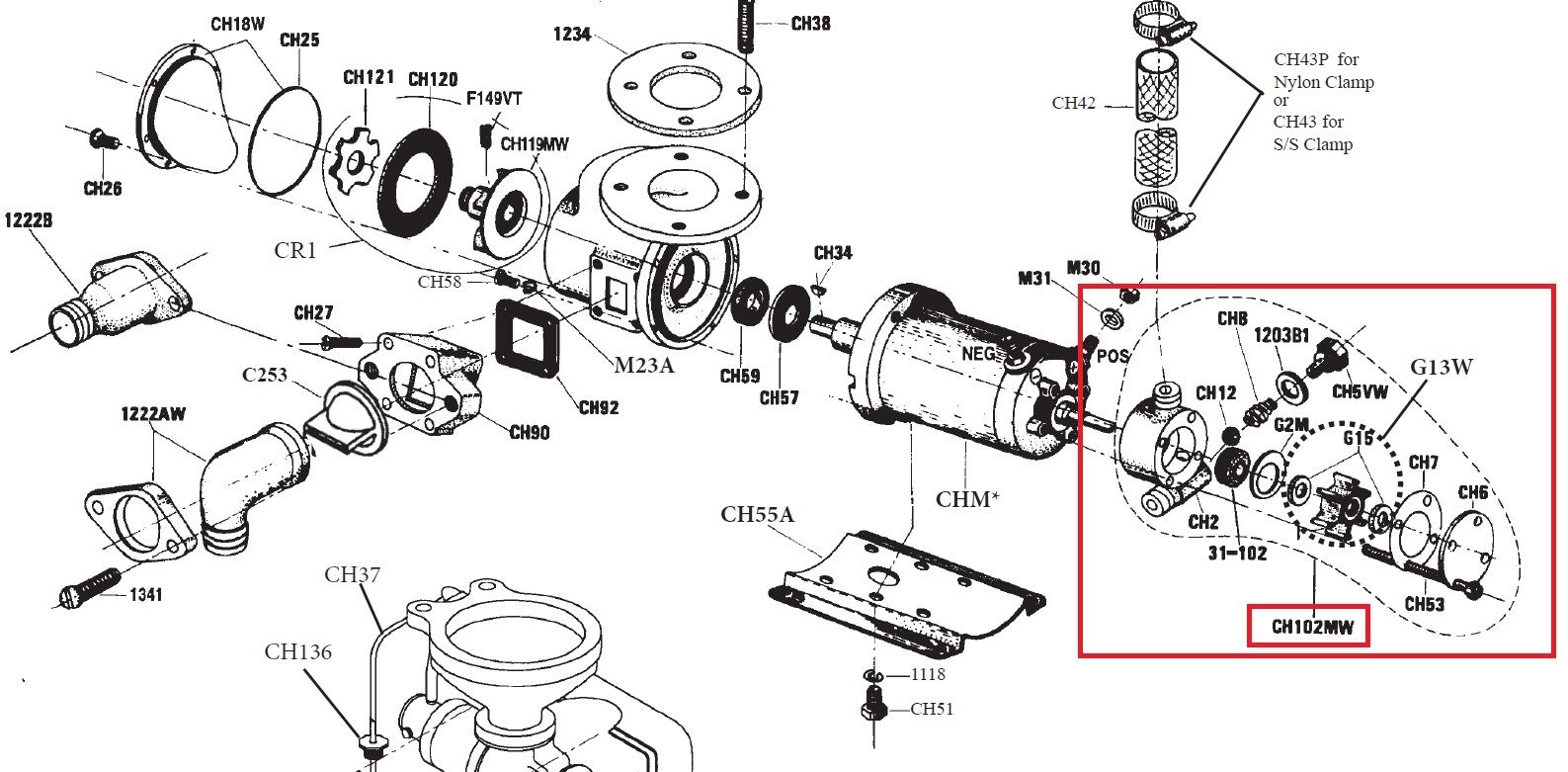

Consists of:

• CH8 Check Valve Spring
• CH12 Check Ball
• CH2 Pump Body (w/shaft seal)
• 31-102 Motor Shaft Seal
• G2M Impeller Wear Plate
• 1203B1 “O” Ring
• G13W Pump Impeller w/(2) G15
• CH7 Pump Gasket
• CH53 Pump Mounting Screw (4)
• CH6 Pump Cover Plate
